Vocab — production domain

What a product is, what it is made of, and the lifecycle events that act on it.

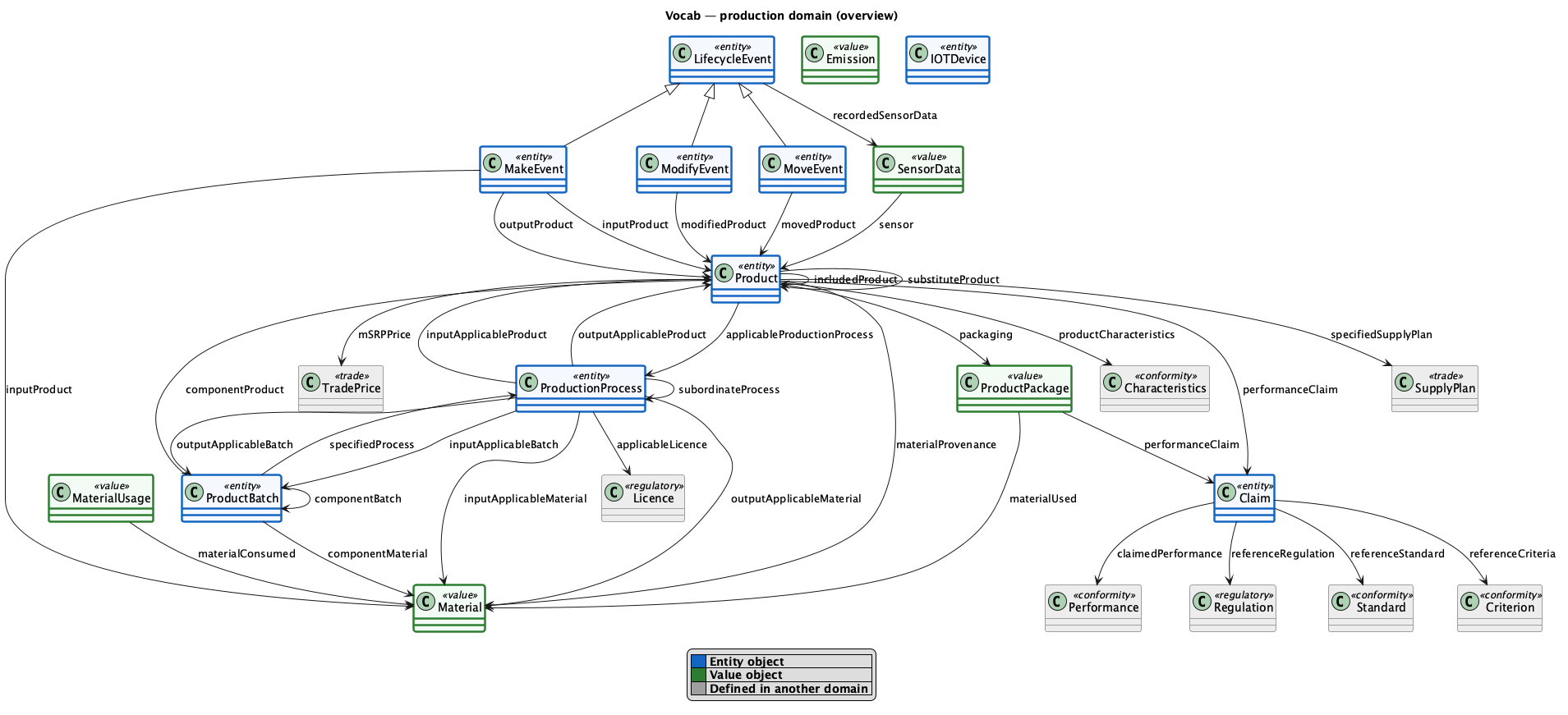

production overview

References (other domains): conformity → Characteristics, Criterion, Performance, Standard; regulatory → Licence, Regulation; trade → SupplyPlan, TradePrice

Classes

14 classes.

Class	Definition
`Claim`	A performance claim about a product, facility or organisation, made against a defined criterion.
`Emission`	A calculation of the pollution (including noise, heat, and radiation etc.) discharged into the environment by a residential, commercial, or industrial facility or by a means of transport, such as a vessel, aircraft or truck.
`IOTDevice`	An IOT (Internet of Things) piece of mechanical or electronic equipment which can collect, report and autonomously transmit digital data.
`LifecycleEvent`	An event describing a step in a product’s lifecycle (make, move, modify); the supertype of MakeEvent, MoveEvent and ModifyEvent. Generic event semantics (aggregation, transformation, EPCIS bizStep/disposition) are out of scope — use GS1 EPCIS where those are needed.
`MakeEvent`	Transformation (manufacture/production) of input products into output products.
`Material`	Details about the origin or source of a material that a product is made from.
`MaterialUsage`	A record of a material a facility consumes and the period over which it does so. An identity-less value object.
`ModifyEvent`	Intervention (e.g. repair) on a product without changing its identity.
`MoveEvent`	Transfer (shipment) of products from one facility to another.
`Product`	Detailed information regarding a product, including its identity, provenance and characteristics.
`ProductBatch`	A group of products considered or dealt with together.
`ProductPackage`	Details of product packaging. Distinct from TransportPackage (transport-domain wrapping).
`ProductionProcess`	A naturally occurring or designed sequence of operations or events in order to produce something.
`SensorData`	A sensor data recording associated with a lifecycle event.

Class detail

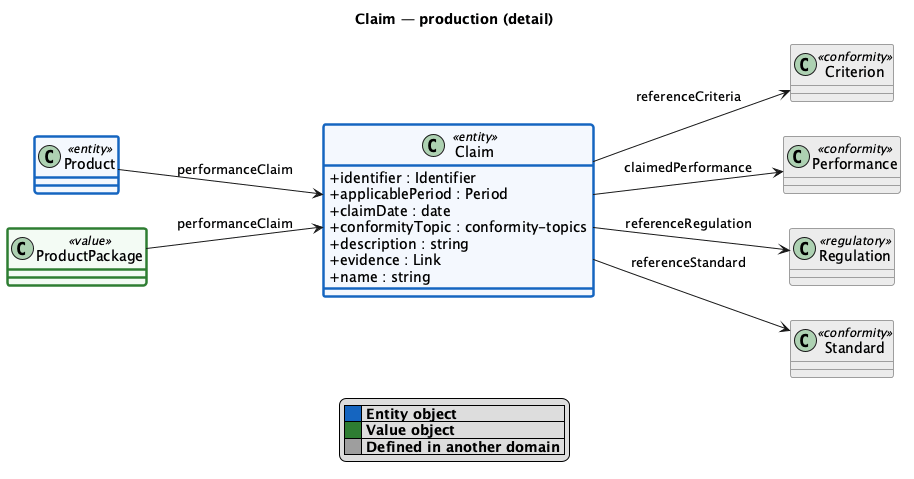

Claim

Claim detail

Property	Type
`identifier`	Identifier
`applicablePeriod`	Period
`claimDate`	date
`claimedPerformance`	Performance
`conformityTopic`	conformity-topics
`description`	string
`evidence`	Link
`name`	string
`referenceCriteria`	Criterion
`referenceRegulation`	Regulation
`referenceStandard`	Standard

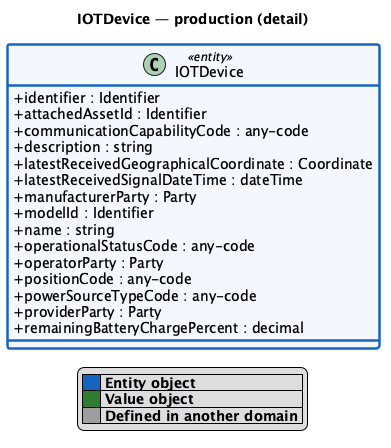

IOTDevice

IOTDevice detail

Property	Type
`identifier`	Identifier
`attachedAssetId`	Identifier
`communicationCapabilityCode`	any-code
`description`	string
`latestReceivedGeographicalCoordinate`	Coordinate
`latestReceivedSignalDateTime`	dateTime
`manufacturerParty`	Party
`modelId`	Identifier
`name`	string
`operationalStatusCode`	any-code
`operatorParty`	Party
`positionCode`	any-code
`powerSourceTypeCode`	any-code
`providerParty`	Party
`remainingBatteryChargePercent`	decimal

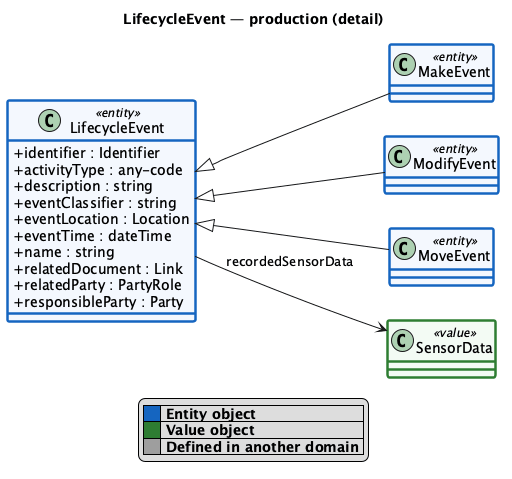

LifecycleEvent

LifecycleEvent detail

Property	Type
`identifier`	Identifier
`activityType`	any-code
`description`	string
`eventClassifier`	string
`eventLocation`	Location
`eventTime`	dateTime
`name`	string
`recordedSensorData`	SensorData
`relatedDocument`	Link
`relatedParty`	PartyRole
`responsibleParty`	Party

MakeEvent

Property	Type
`identifier`	Identifier
`description`	string
`inputProduct`	Product
`inputProduct`	Material
`madeAtFacility`	Facility
`name`	string
`outputProduct`	Product

Material

Property	Type
`hazardous`	boolean
`mass`	Measure
`massFraction`	decimal
`materialSafetyInformation`	Link
`materialType`	any-code
`originCountry`	country-id
`recycledMassFraction`	decimal
`symbol`	Image

MaterialUsage

Property	Type
`applicablePeriod`	Period
`materialConsumed`	Material

ModifyEvent

Property	Type
`identifier`	Identifier
`description`	string
`modifiedAtFacility`	Facility
`modifiedProduct`	Product
`name`	string

MoveEvent

Property	Type
`identifier`	Identifier
`consignmentId`	anyURI
`description`	string
`fromFacility`	Facility
`movedProduct`	Product
`name`	string
`toFacility`	Facility

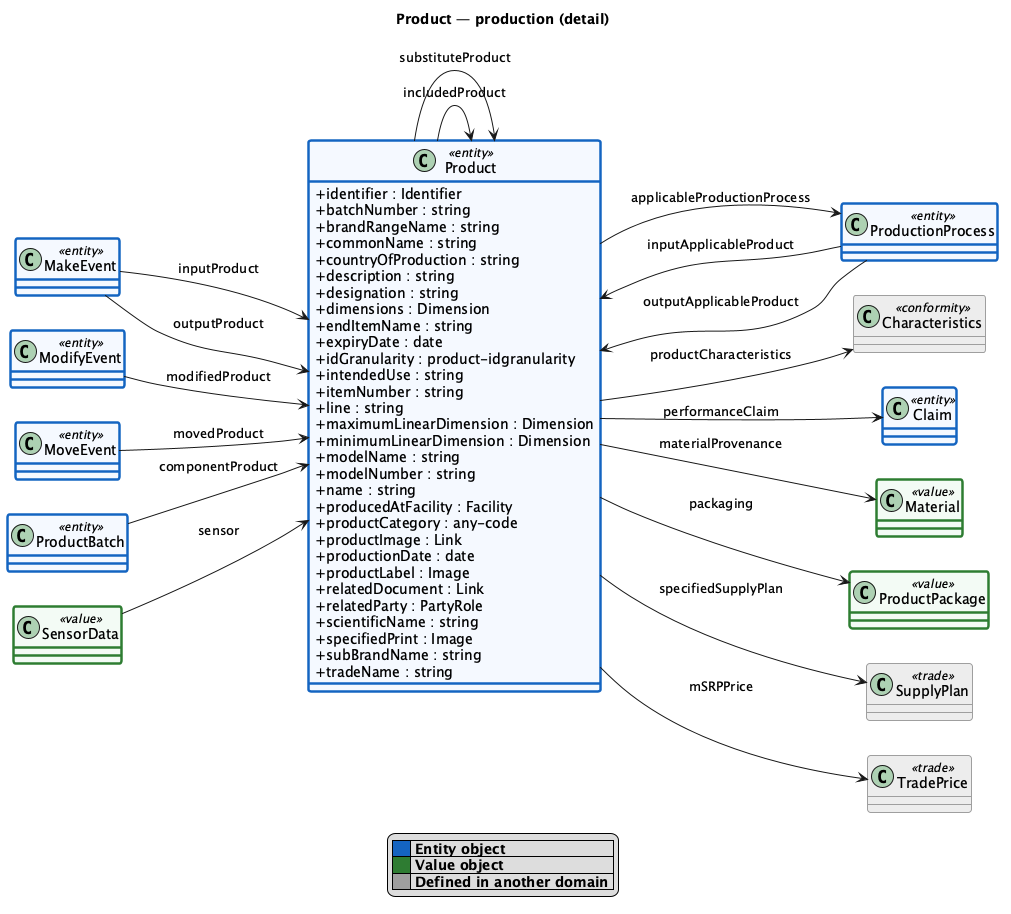

Product

Product detail

Property	Type
`identifier`	Identifier
`applicableProductionProcess`	ProductionProcess
`batchNumber`	string
`brandRangeName`	string
`commonName`	string
`countryOfProduction`	string
`description`	string
`designation`	string
`dimensions`	Dimension
`endItemName`	string
`expiryDate`	date
`idGranularity`	product-idgranularity
`includedProduct`	Product
`intendedUse`	string
`itemNumber`	string
`line`	string
`materialProvenance`	Material
`maximumLinearDimension`	Dimension
`minimumLinearDimension`	Dimension
`modelName`	string
`modelNumber`	string
`mSRPPrice`	TradePrice
`name`	string
`packaging`	ProductPackage
`performanceClaim`	Claim
`producedAtFacility`	Facility
`productCategory`	any-code
`productCharacteristics`	Characteristics
`productImage`	Link
`productionDate`	date
`productLabel`	Image
`relatedDocument`	Link
`relatedParty`	PartyRole
`scientificName`	string
`specifiedPrint`	Image
`specifiedSupplyPlan`	SupplyPlan
`subBrandName`	string
`substituteProduct`	Product
`tradeName`	string

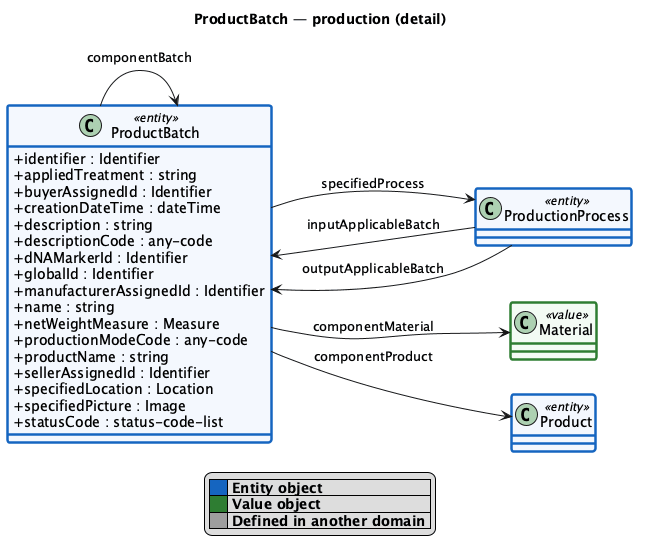

ProductBatch

ProductBatch detail

Property	Type
`identifier`	Identifier
`appliedTreatment`	string
`buyerAssignedId`	Identifier
`componentBatch`	ProductBatch
`componentMaterial`	Material
`componentProduct`	Product
`creationDateTime`	dateTime
`description`	string
`descriptionCode`	any-code
`dNAMarkerId`	Identifier
`globalId`	Identifier
`manufacturerAssignedId`	Identifier
`name`	string
`netWeightMeasure`	Measure
`productionModeCode`	any-code
`productName`	string
`sellerAssignedId`	Identifier
`specifiedLocation`	Location
`specifiedPicture`	Image
`specifiedProcess`	ProductionProcess
`statusCode`	status-code-list

ProductPackage

Property	Type
`dimensions`	Dimension
`materialUsed`	Material
`packageLabel`	Image
`packagingLevelCode`	packaging-level-code-list
`performanceClaim`	Claim

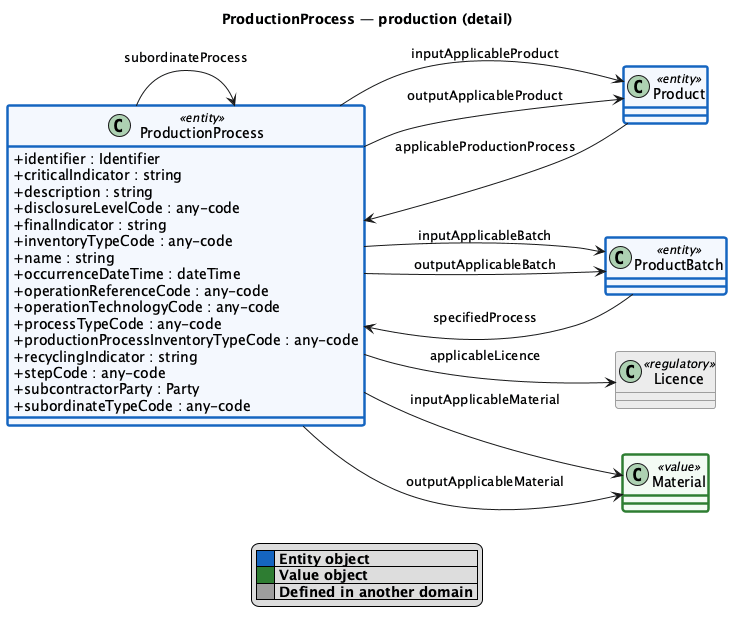

ProductionProcess

ProductionProcess detail

Property	Type
`identifier`	Identifier
`applicableLicence`	Licence
`criticalIndicator`	string
`description`	string
`disclosureLevelCode`	any-code
`finalIndicator`	string
`inputApplicableBatch`	ProductBatch
`inputApplicableMaterial`	Material
`inputApplicableProduct`	Product
`inventoryTypeCode`	any-code
`name`	string
`occurrenceDateTime`	dateTime
`operationReferenceCode`	any-code
`operationTechnologyCode`	any-code
`outputApplicableBatch`	ProductBatch
`outputApplicableMaterial`	Material
`outputApplicableProduct`	Product
`processTypeCode`	any-code
`productionProcessInventoryTypeCode`	any-code
`recyclingIndicator`	string
`stepCode`	any-code
`subcontractorParty`	Party
`subordinateProcess`	ProductionProcess
`subordinateTypeCode`	any-code

SensorData

Property	Type
`geoLocation`	Coordinate
`measuredValue`	Measure
`metric`	performance-metrics
`rawData`	Link
`sensor`	Product

Code lists

2 schemes · 12 concepts.

Code list	Concepts	Structure
Product Status	9	flat
Product IDGranularity	3	flat
